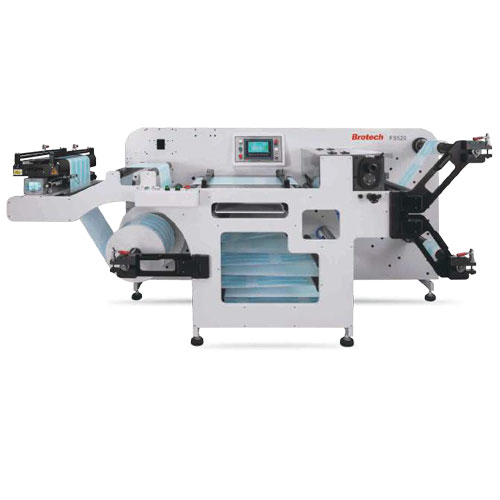

New FS is a label quality inspection, slitting, and rewinding system, with imported servo driven 3”/76mm air shaft for unwind/rewind. Can stop automaticly against winder diameter. The unwind partan choose loop-closed tension catrol. Equipped with world lead automatic inspection system and advanced shear knife, suitable for max 700mm diameter label roll slitting, rewinding, and 100% inspection.
| MODEL | NEW FS330 | NEW FS420 | NEW FS520 |
| Max web width | 340mm | 430mm | 530 mm |
| Max unwind diameter | 700mm | 700mm | 700mm |
| Max rewind diameter | 500mm | 500mm | 500mm |
| Max inspection width | 330mm | 420mm | 520mm |
| Min Slitting Width | 20mm | 20mm | 20 mm |
| Max Mechanical Speed | 300m/min | 300m/min | 300 m/min |
|
| 10 KW | 10KW | 13KW |
| Air Supply | 8 Bar | 8 Bar | 8 Bar |
| Power Supply | 3PH+N+E | 3PH+N+E | 3 PH+N+E |
| Size (length×width×height) | 3.1×1.0×1.8m | 3.1×1.1×1.8m | 3.1×1.3×1.8 m |
| Machine Weight | 1.5T | 2T | 2.5 T |
